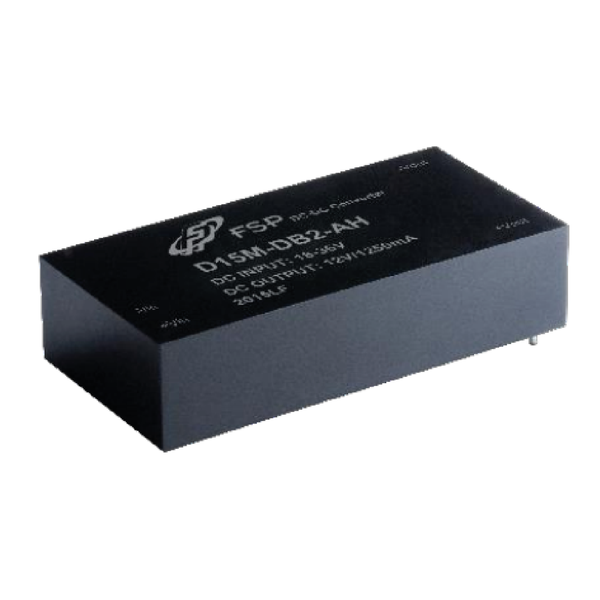

D15M-DB2 Series

Medical, Industrial 2"x1" 85%~89% 9-18 VDC, 18-36 VDC, 36-75 VDC 5V~10V, 12V~20V, 21V~30V Isolated DC-DC converter 1W~29W

Technische Eigenschaften

2:1 Wide input range voltage
2x1” package; UL94V-0 package material
Efficiency up to 88%
-40°C to +100°C operating temperature
Isolation 4000Vac, rated for 250Vac working voltage
No minimum load requirement

Wird verwendet für

The series of DC-DC medical converter in industrial standard pin-out DIP24 package, are capable of delivering 15 watts. They are designed for medical instrumentation, industry control application.
