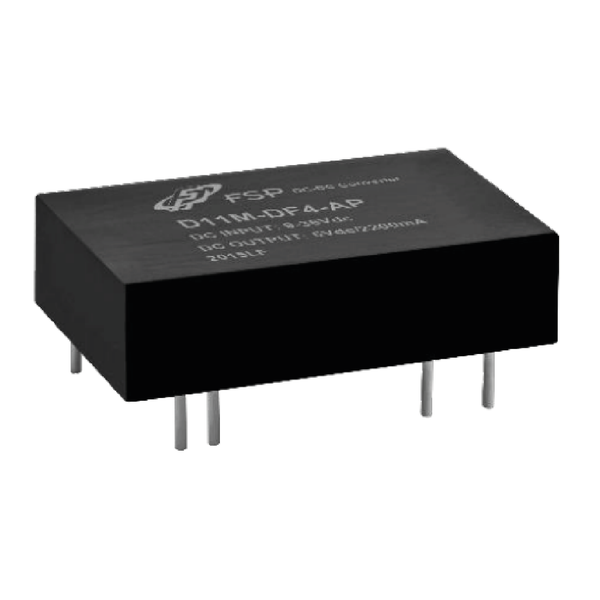

D11M-DF4 Series

Medical DIP 85%~89% 9-36 VDC, 18-75 VDC 5V~10V, 12V~20V, 21V~30V Isolated DC-DC converter 1W~29W

Technische Eigenschaften

Medical Isolated DC-DC converter
4:1 Wide input range voltage
11W in DIP 24 package
Continuous short circuit protection
Under voltage lockout function
5KVac isolated voltage
Medical safety meets 2xMOPP per 3rd Edition of IEC/EN 60601-1

Wird verwendet für

The series of DC-DC medical converter in industrial standard pin-out DIP24 package, are capable of delivering 11 watts. They are designed for medical equipment, industrial control system, battery management system, telecom application.
