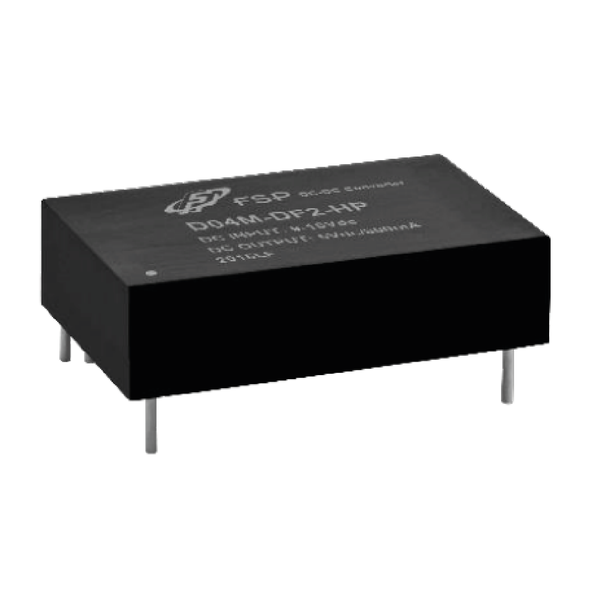

D04M-DF2 Series

Medical DIP other 4.5-9 VDC, 9-18 VDC, 18-36 VDC 1V~5V, 5V~10V, 12V~20V Isolated DC-DC converter 1W~29W

Technische Eigenschaften

Medical Isolated DC-DC converter
2:1 Wide input range voltage
4W power in standard DIP 24 package
8mm Clearance and creepage distance @ 250Vac working voltage
4000Vac isolation for 2MOPP application
Built-in EMI class A filter
Continuous short circuit Protection
UL94V-0 package material
EN60601 safety approved

Wird verwendet für

The series of DC-DC medical converter in industrial standard pin-out DIP24 package, are capable of delivering 4 watts. They are designed for high end industrial application, medical application.

₽ После оформления заказа мы вышлем вам коммерческое предложение с актуальными ценами
