A20-XA05 Series

Industrial 90~264 Vac 12V~20V, 21V~30V

Technische Eigenschaften

Universal input 90-264VAC, 47-63Hz
-25°C to +75°C operating temperature
High efficiency
Fixed output voltage
Continuous short circuit protection
Isolation voltage 3000VAC/ 60sec.
Low no load power < 0.05W
EMI meets EN55032, class B

Wird verwendet für

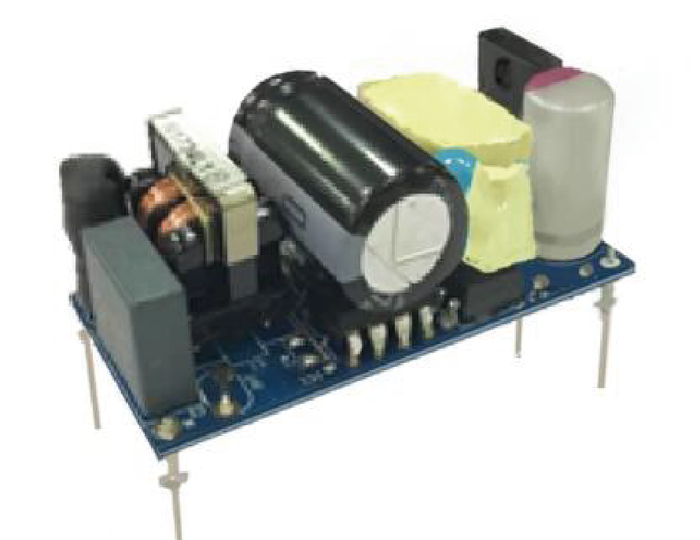

The series of AC-DC switching power supplies in a package of 49.0 x 23.8 x 23.5 mm are capable of delivering 20 watts. They are designed for industry control application, standby power application, AC motor control application.
