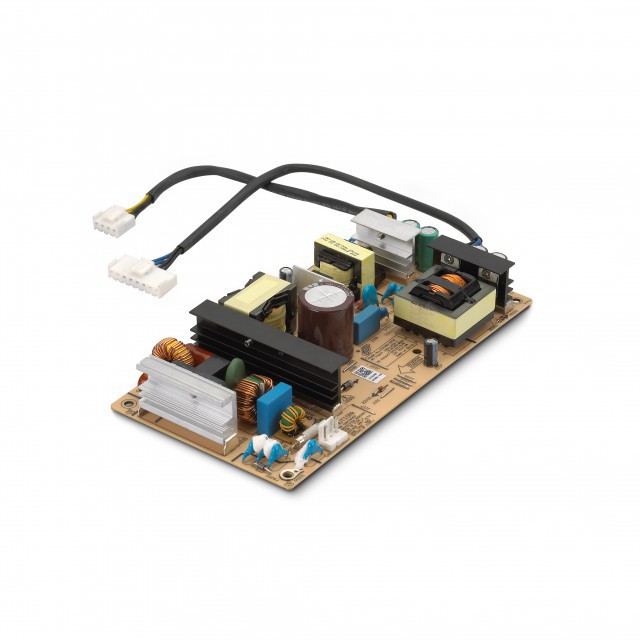

FSP280-2F47-A54H

Technische Eigenschaften

Low inrush current
Withstand voltage (Hi-Pot) 1500Vac between PE & RETURN
Surge protection ±3 KV diff, ±6 KV com
High altitude 5000 meters operation
OTP, Brown-out protection

Wird verwendet für

This AC-DC switching power supplies is an isolated dual outputs power. Maximum output power is 54V at 200W & 12V at 50W. This PSU is capable of delivering 280 watts continuous power with 7 CFM forced air condition. PSU is suitable for PoE Switch and networking application.

₽ После оформления заказа мы вышлем вам коммерческое предложение с актуальными ценами

Похожие товары

PU60 Series

Kompakte Größe 2" x 4" x 1,18"
Einzel-, Doppel- und Dreifachausgänge
Weitbereichseingang 90-264 VAC
Emissionen der Stufe B
RoHS-konform
Zertifiziert nach IEC/EN/cTUVus 62368-1
Dieses Modell ist für die Anwendung nach IEC 60335-1 geeignet. ^(Hinweis)

Model	Output #1				Output #2			Output #3			Max. Output Power
Model	V1	Min. Current	Max. Current at convection	Max. Current at 5 CFM	V2	Min. Current	Max. Current	V3	Min. Current	Max. Current
PU60-10A	5 V	0 A	11.0 A	11.0 A	(N/A)			(N/A)			55 W
PU60-12A	12 V	0 A	5.0 A	5.0 A	(N/A)			(N/A)			60 W
PU60-13A	15 V	0 A	4.3 A	4.3 A	(N/A)			(N/A)			64 W
PU60-14A	24 V	0 A	2.7 A	2.7 A	(N/A)			(N/A)			64 W
PU60-18A	48 V	0 A	1.35 A	1.35 A	(N/A)			(N/A)			64 W
PU60-23A	+5 V	0.5 A	6.0 A	8 A	+12 V	0.1 A	3.0 A	(N/A)			55 W
PU60-25A	+5 V	0.5 A	6.0 A	8 A	+24 V	0.1 A	1.5 A	(N/A)			55 W
PU60-31A	+5 V	0.5 A	6.0 A	8 A	+12 V	0.1 A	3.0 A	-12 V	0 A	0.5 A	55 W
PU60-31-3A	+3.3 V	0.8 A	6.0 A	8 A	+5.2 V	0.1 A	3.0 A	+12 V	0 A	0.5 A	37.5 W
PU60-31-5A	+5 V	0.5 A	6.0 A	8 A	+3.3 V	0 A	1.5 A	+12 V	0 A	0.5 A	37.5 W/47.5W
PU60-32A	+5 V	0.5 A	6.0 A	8 A	+15 V	0.1 A	2.4 A	-15 V	0 A	0.5 A	55 W
PU60-39A	+5 V	0.5 A	6.0 A	8 A	+24 V	0.1 A	1.5 A	-12 V	0 A	0.5 A	55 W

FSP065-P35 A Series

Surge protection ±2 KV diff., ±4 KV com
Operating altitude 5000 meters
Over temperature protection and brown out protection

Model	Output Voltage	Min. Load	Max. Current	Tolerance	Ripple & Noise	Max. Power	Efficiency 115 / 230 Vac
FSP065-P35-A05	5 V	0 A	13.0 A	±3%	100 mV	65W	84 / 86%
FSP065-P35-A12	12 V	0 A	5.42 A	±3%	120 mV	65W	87 / 88%
FSP065-P35-A24	24 V	0 A	2.7 A	±3%	240 mV	65W	87 / 88%

FSP100-P35-B19

1,5KVac isoliert zwischen PE und RETURN
Überspannungsschutz ±2 KV diff., ±4 KV com
Betrieb in großer Höhe (5000 Meter)
OTP, Brown-out-Schutz
+12V Lüftertreiber
Fast-on Erdungslasche

Compliant with EN62368 , replacing FSP150-1H35-19,

FSP080-P24 A Series

1.5KVac isolated between PE and RETURN
High altitude 5000 meters operation
OTP, Brown out protection
Surge protection ±2 KV diff., ±4 KV com

Model	Output Voltage	Min. Load	Max. Current	Tolerance	Ripple & Noise	Max. Power	Efficiency 115 / 230 Vac
FSP080-P24-A12	12 V	0 A	6.67 A	±3%	120 mV	80W	86 / 88%
FSP080-P24-A24	24 V	0 A	3.33 A	±3%	240 mV	80W	87 / 90%
FSP080-P24-A54	54 V	0 A	1.48 A	±3%	540 mV	80W	87 / 90%
