FSP150-P35 A Series
Technische Eigenschaften
- 1.5KVac isolated between PE and RETURN
- Surge protection ±2 KV diff., ±4 KV com
- High altitude 5000 meters operation
- OTP, Brown out protection
- +12V fan driver
- Ground pad terminal
Model | Output | Efficiency Max. Power 115/230 Vac (typical) |
||||||
Voltage | Min. Load |
Max. Current convection |
Max. Current 7 CFM |
Tolerance | Ripple & Noise |
Max.Power | ||
FSP150-P35-A12 | 12 V | 0 A | 8.34 A | 12.50 A | ±3% | 120 mV | 100 W / 150 W | 90 / 92% |
FSP150-P35-A24 | 24 V | 0 A | 4.17 A | 6.25 A | ±3% | 200 mV | 100 W / 150 W | 89 / 91% |
FSP150-P35-A54 | 54 V | 0 A | 1.86 A | 2.78 A | ±3% | 300 mV | 100 W / 150 W | 91 / 92% |
- Compliant with EN62368 , replacing FSP100-1B01-12,
Wird verwendet für

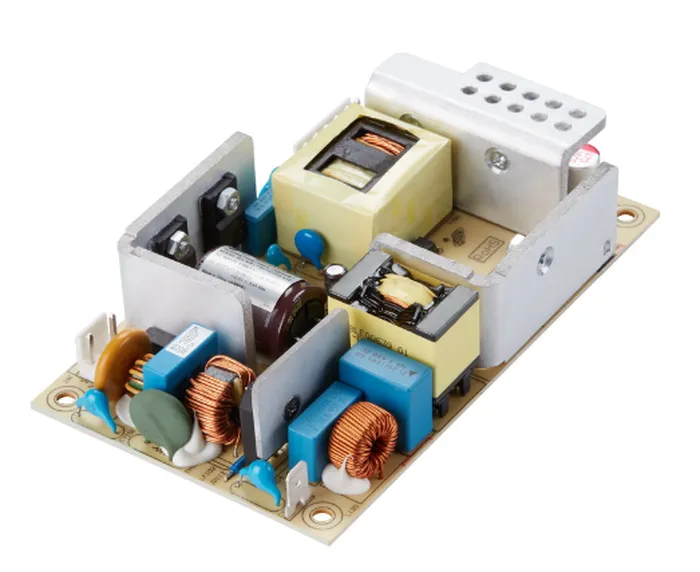

This AC-DC switching power supplies in a package of 3 x 5 inches is a Class-I PSU and no load power consumption less than 0.21W. This PSU is capable of delivering 150 watts continuous power at 7 CFM forced air cooling or 100 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for audio & video, display, information, and networking application.
₽
