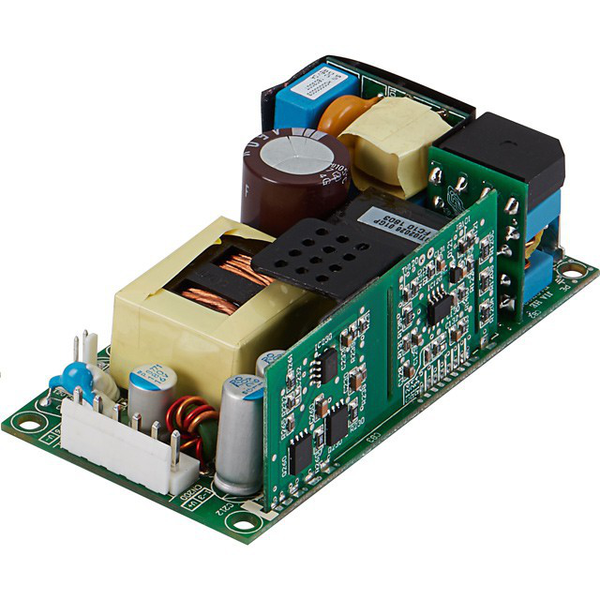

FSP150-P24 A Series
Technische Eigenschaften
- 1.5KVac isolated between PE and RETURN
- High altitude 5000 meters operation
- OTP, Brown out protection
- +12V fan driver
- Fast-on ground tab
Model | Output | Efficiency Max. Power 115/230 Vac (typical) |
||||||
Voltage | Min. Load |
Max. Current convection |
Max. Current 7 CFM |
Tolerance | Ripple & Noise |
Max.Power | ||
FSP150-P24-A12 | 12 V | 0 A | 8.35 A | 12.50 A | ±3% | 120 mV | 100 W / 150 W | 89 / 91% |
FSP150-P24-A19 | 19 V | 0 A | 5.26 A | 7.9 A | ±3% | 190 mV | 100 W / 150 W | 88 / 90% |
FSP150-P24-A24 | 24 V | 0 A | 4.20 A | 6.25 A | ±3% | 240 mV | 100 W / 150 W | 88 / 90% |
FSP150-P24-A54 | 54 V | 0 A | 1.85 A | 2.78 A | ±3% | 500 mV | 100 W / 150 W | 88 / 90% |
Wird verwendet für
This AC-DC switching power supplies in a package of 2 x 4 inches is a Class-I PSU and no load power consumption less than 0.21W. This PSU is capable of delivering 150 watts continuous power at 7 CFM forced air cooling or 100 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for audio & video, display, information, networking & PoE application.
₽
