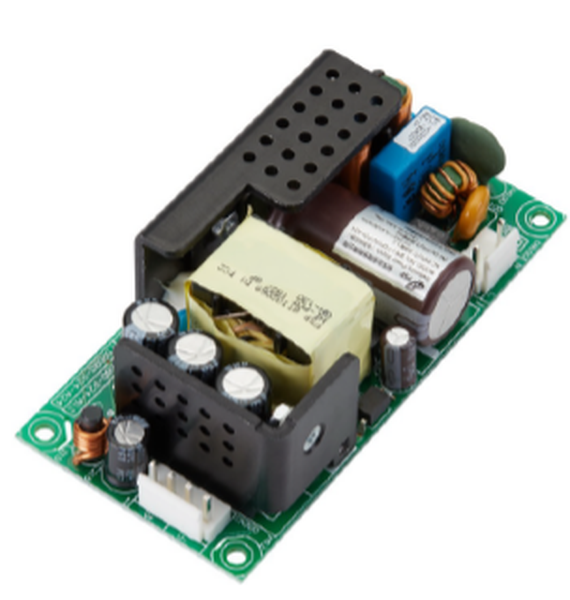

FSP080-P24 A Series
Technische Eigenschaften
- 1.5KVac isolated between PE and RETURN
- High altitude 5000 meters operation
- OTP, Brown out protection
- Surge protection ±2 KV diff., ±4 KV com
Model |
Output Voltage |
Min. Load |
Max. Current |
Tolerance |
Ripple & Noise |
Max. Power |
Efficiency 115 / 230 Vac |
FSP080-P24-A12 | 12 V | 0 A | 6.67 A | ±3% | 120 mV | 80W | 86 / 88% |
FSP080-P24-A24 | 24 V | 0 A | 3.33 A | ±3% | 240 mV | 80W | 87 / 90% |
FSP080-P24-A54 | 54 V | 0 A | 1.48 A | ±3% | 540 mV | 80W | 87 / 90% |
Wird verwendet für
This AC-DC switching power supplies in a package of 2 x 4 inches is a compact Class-II PSU and no load power consumption less than 0.21W. This PSU is capable of delivering 80 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for audio & video, display, information, and networking application.
₽
