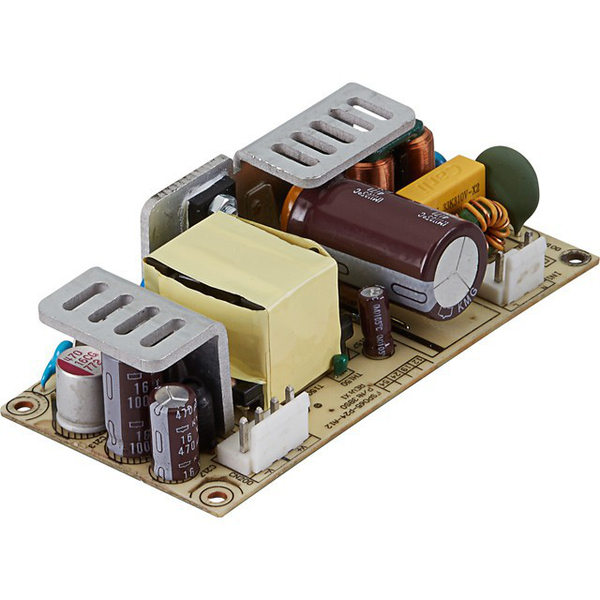

FSP065-P24 A Series
Technische Eigenschaften
- 1.5KVac isolated between PE and RETURN
- Surge protection ±2 KV diff., ±4 KV com
- High altitude 5000 meters operation
- OTP, Brown out protection
- Fast-on ground tab
Model |
Output Voltage |
Min. Load |
Max. Current |
Tolerance |
Ripple & Noise |
Max. Power |
Efficiency 115 / 230 Vac |
FSP065-P24-A12 | 12 V | 0 A | 5.40 A | ±3% | 120 mV | 65W | 88 / 89% |
FSP065-P24-A19 | 19 V | 0 A | 3.42 A | ±3% | 190 mV | 65W | 89 / 90% |
FSP065-P24-A24 | 24 V | 0 A | 2.70 A | ±3% | 240 mV | 65W | 90 / 90% |
FSP065-P24-A54 | 54 V | 0 A | 1.20 A | ±3% | 300 mV | 65W | 91 / 92% |
- Compliant with EN62368 , replacing FSP065-P24-12N, FSP060-10NBAB-12, FSP060-12NBAB-12,
Wird verwendet für
This AC-DC switching power supplies in a package of 2 x 4 inches is a compact Class-II PSU and no load power consumption less than 0.21W. This PSU is capable of delivering 65 watts continuous power at convection cooling and 50℃ operation temperature. Product is suitable for audio & video, display, information, and networking application.
₽
